Plumbing Drawings
Water supply and drainage planned quietly into the building from the start.
Overview
Plumbing drawings organise water supply, drainage, fixtures, shafts and wet-area requirements so they fit the architecture and can be maintained over time. Architects Valley coordinates plumbing layouts with plans, bathrooms, kitchens, structure and external services for residential and selected commercial projects.
Deliverables
- Plumbing point layouts
- Isometric schematics
- BOQ
In Detail
The best plumbing design is carefully planned and barely noticed.
Bathrooms and kitchens are among the most technically dense areas in a building. A few centimetres can affect drainage slope, floor levels, vanity depth, shower position or the route of a vertical stack. Plumbing therefore needs to be considered while the plan and structure are still being developed, not only when pipes are ready to be installed.
We coordinate fixture positions with usable space, wall thicknesses, shafts and service access. Supply and drainage routes are reviewed against beams, slabs and ceiling zones. Wet-area levels and sunken slabs are checked where applicable. The aim is to keep services efficient while protecting room proportions and allowing future maintenance without unnecessary demolition.
In villas, plumbing planning may also involve overhead and underground tanks, pumps, external taps, landscape irrigation points, utility areas and multiple vertical stacks. Commercial projects can introduce higher fixture counts and more complex service zones. Specialist hydraulic calculations are handled by the relevant engineering consultant where required, while our drawings focus on clear spatial coordination with the architecture.
Wet-area planning
Bathrooms, kitchens and utility areas are checked for fixture clearances, wall build-ups, niches, drain positions and service access before finishes and joinery are fixed.
Shaft and stack coordination
Vertical service zones are positioned so pipes can run efficiently without compromising rooms, façades or structural members. Access for inspection and maintenance is considered at the same time.
Drainage and floor levels
Floor traps, slopes, thresholds and selected sunken areas are coordinated to support drainage while keeping transitions practical and visually clean.
Architecture and structure interface

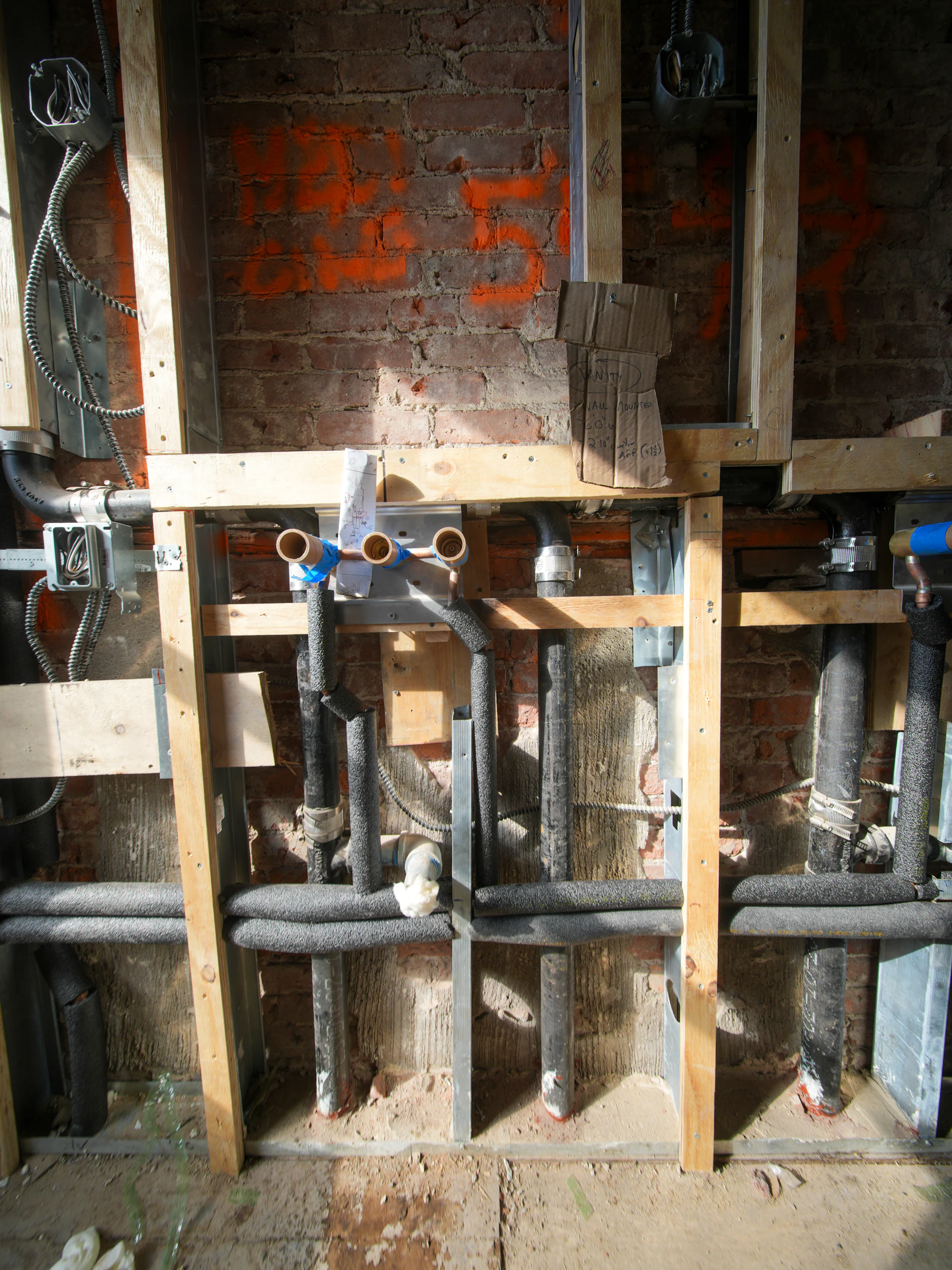

Pipe routes, sleeves and openings are coordinated with structural information and architectural details so site teams are not forced to cut or reroute work unexpectedly.
Design Approach
Planning wet areas as a coordinated technical zone
Bathroom design works best when fixture centres, wall build-ups and plumbing routes are established together. A wall-hung WC may need a concealed cistern depth. A recessed shower niche requires wall thickness. A floor-mounted vanity affects trap access. Shower glass needs clean edges and sensible slopes. These details are simple to resolve on paper but difficult once waterproofing and stone are complete.
Kitchens and utilities have their own requirements. Sink and appliance points need to match cabinet modules, while water purifiers, dishwashers and washing machines may need dedicated provisions. External service areas can require floor drains, taps and equipment connections that should be coordinated before tiles and counters are installed.
Maintenance remains part of the design brief. Inspection points, valves and access panels should be reachable without dismantling major finishes. Good plumbing coordination hides services visually while still recognising that every system will eventually need inspection, cleaning or repair.
Local Expertise
Plumbing coordination for homes and villas across Noida and Greater Noida
Independent homes often place bathrooms on several floors, which makes vertical alignment and shaft planning important. Thoughtful stacking can simplify pipe runs, reduce unnecessary bends and make maintenance more manageable. At the same time, architectural priorities such as bedroom layouts, façade openings and staircase zones need to be protected.
Our plumbing coordination can form part of architecture design, interior design or a broader turnkey consultancy. When the project has separate engineering consultants, we work from their technical requirements and make sure the service routes are reflected correctly in architectural and interior documentation.
The Process
Considered stages,
transparent timelines.
- 01Fixture schedule
- 02Layouts
- 03Coordination with structure
- 04Site validation
Why It Matters
How plumbing drawings reduce rework in wet areas
Plumbing mistakes are disruptive because they are often hidden beneath floors, inside walls or behind finished surfaces. A misplaced outlet can affect stone cutting or vanity design. An unplanned stack can create an awkward boxing in a room. Insufficient floor depth can make drainage slopes difficult. Coordinated drawings allow these issues to be reviewed before waterproofing and finishes begin.
Clear documentation also helps different trades understand sequencing. Civil teams know where sleeves and sunken areas are needed. Plumbers understand fixture centres and routes. Interior teams can detail vanities and wall finishes around confirmed points. The result is not simply a cleaner drawing set; it is a better chance of achieving tidy, maintainable wet areas on site.
Before We Begin
Project information that improves plumbing coordination
Final or near-final bathroom and kitchen layouts are important because plumbing points depend on exact fixture locations. Sanitaryware models, concealed cistern types, shower systems, vanity details and appliance selections can change connection positions or required wall depths. When products are not yet selected, we coordinate around agreed assumptions and update the drawings once specifications are confirmed.
The building’s vertical organisation also matters. Aligning bathrooms and kitchens between floors can simplify shafts and stacks, but architectural priorities may require exceptions. We review these relationships with the design and engineering team so service efficiency is balanced with room planning rather than deciding either discipline in isolation.
On renovation projects, existing pipe routes and drainage points may limit what can be achieved without major work. A site review and accurate as-built information help determine whether fixtures can move easily or whether the design should work more closely with existing services.
The desired outcome is a plumbing layout that supports the architecture without demanding visible compromises later. Fixtures should align with the interior design, shafts should have a logical place, service routes should avoid structural conflicts and maintenance points should remain accessible. When this information is coordinated early, waterproofing, masonry, flooring and joinery can proceed with greater certainty because the hidden service requirements have already been considered rather than discovered one trade at a time.
Frequently Asked Questions
Plumbing Drawings: what clients usually ask
These answers explain the typical scope and coordination approach. Final deliverables, consultant responsibilities and site involvement are confirmed for each project before work begins.
What do plumbing drawings normally show?
They may show sanitary fixture locations, water supply routes, drainage points, shafts, stacks, floor traps, selected pipe routes, service connections and coordination notes. The final engineering design and pipe sizing may be provided by the plumbing consultant depending on project scope.
Why should plumbing be coordinated before structural work?
Some pipes require sleeves, openings, sunken slabs or dedicated shafts. If these are identified before concrete work, the structure can accommodate them deliberately rather than being altered later.
Do you coordinate bathroom layouts with plumbing points?
Yes. Fixture positions are checked with bathroom dimensions, door swings, shower zones, vanities, mirrors, niches and wall finishes so technical points support the intended interior layout.
Can plumbing drawings cover kitchens and utility areas too?
Yes. Sink points, dishwasher or washing machine requirements, utility sinks and other water-dependent equipment can be coordinated according to the project brief and equipment selections.
Can you review plumbing drawings prepared by another consultant?
We can review consultant drawings from an architectural coordination perspective, checking whether shafts, routes and fixture positions align with the current plans, structure and interior requirements.
